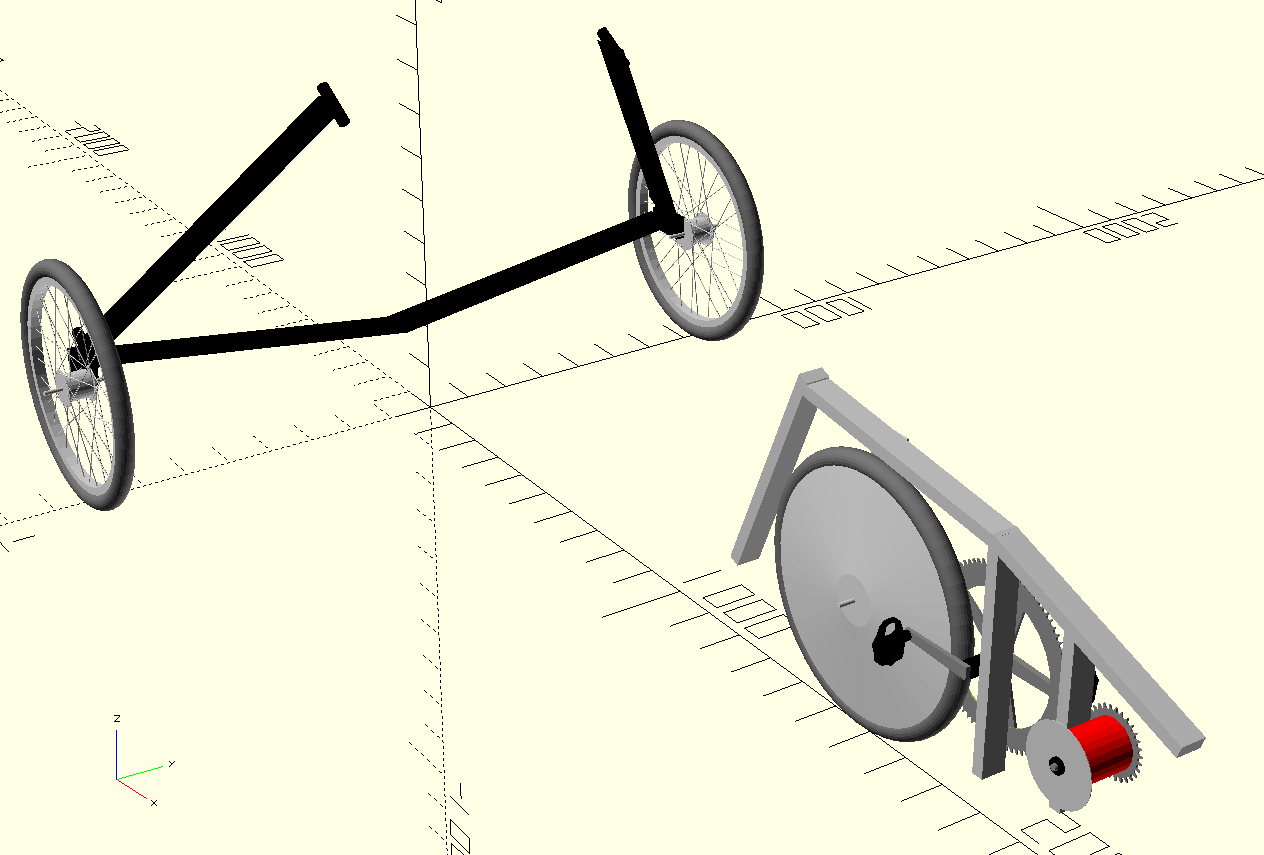

README.md	Changed the illustration in the README to represent progress.	2025-09-07 08:40:49 +01:00
subframe-and-fourbar.png	Changed the illustration in the README to represent progress.	2025-09-07 08:40:49 +01:00
tricycle-2b-export.svg	Created a git repository to track this.	2025-09-04 08:35:19 +01:00
tutorial.scad	Created a git repository to track this.	2025-09-04 08:35:19 +01:00

README.md

tricycle-mechanical-design

Design of a highly experimental recumbent tricycle, not software at all.

Status

Still at a very preliminary, pre-prototype stage. Work is documented here.

The current model is built with OpenSCAD; to render the model, open model/tricycle.scad.

Dependencies

The following libraries are used into this model. They should be downloaded and installed into your OpenSCAD library directory, which on Linux systems is usually $HOME/.local/share/OpenSCAD/libraries.

Library	Referenced as	Author	Licence
BentSim	BentSim	Pierre Rouzeau	GPL
Sprocket Generator V2	SprocketGenerator2	Hampus Andersson	Creative Commons Attribution
NACA Airfoils - 4 digit fully parametric]	NACAAirfoils	Rudolf Huttary	Creative Commons - Attribution - Non-Commercial
The Belfry OpenScad Library, v2	BOSL2	Numerous contributors	BSD 2-Clause
